Detailed Specifications |
|
Model |

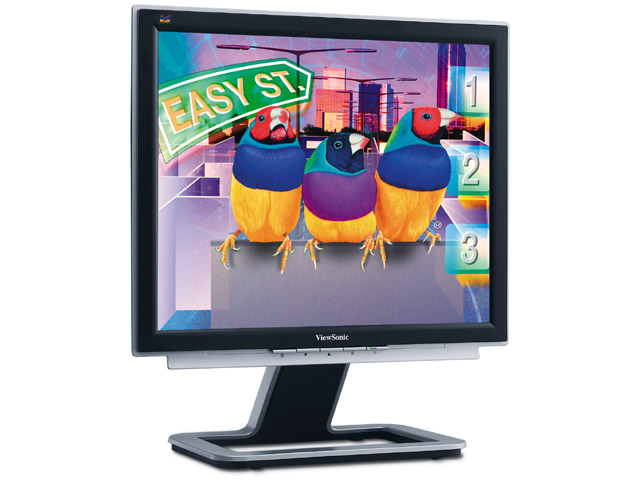

VX924 |
|
Display Type |
14.8" horizontal
x 11.9" vertical x 19.0" diagonal |
|
Display Area |
14.8" horizontal x 11.9"
vertical; 19.0" diagonal |
|
Recommended Resolution |
1280x1024 |
|
Response Time |
4ms
(gray-to-gray); 5ms (typ) |
|
Contrast Ratio |
550:1 |
|
Viewing Angle |
160° horizontal,
160° vertical @ contrast ratio > 5 |
|
Brightness |
270 cd/m2 |
|
Panel Surface |
Anti-glare |
|
Light Source |
Long life, 40,000 hrs. (typ)
|
|
Input Video Signal |
RGB analog (75
ohms, 0.7 Vp-p); DVI-D (TMDS, 100 ohms) |
|
Sync
|
H/V separated
(TTL), composite,
sync-on-green |
|
Frequency |
Fh: 30~82kHz, Fv:
50~75Hz |
|
PC
Compatibility |
VGA up to
1280x1024 non-interlaced
|
|
Connector
|
Analog: 15-pin
mini D-sub and DVI-D
Power: 3-pin AC plug, (CEE22) |
|
Regulations |
UL, cUL,
FCC-B, CB, CE, ENERGY, NOM,
NEMKO/GS (covers TUV/GS), NEMKO
ERGO (covers TUV/ERGO, ISO13406-2
& MPR II), TCO'99, GOST-R + 20
original copies hygienic, SASO, PCBC,
VCCI, BSMI, CCC, PSB, C-TICK,
Argentina-S, PSE (power adapter),
Green Mark |
|
Power Consumption |
35W (typ) |
|
Dimensions |
17.0" x 18.4" x
7.9" (with stand)
17.0" x 14.6" x 2.6" (without stand) |
|
Weight |
18.7lbs
(8.5kg) (with stand)
|
|
Manufacturer
Product Link |
VX924
|
|
Warranty
Contact Information |
|
'* This item may
only be returned for replacement with identical item.*'
For support on this product,
Contact ViewSonic Tech Support @
800-888-8583 in the U.S. or
go to
ViewSonic Tech Support |
